PROJECT DATA
Category
Green Corridor Pre-Feasibility
Timeline
7 months to 4 years
Lead
Mærsk Mc-Kinney Møller Center for Zero Carbon Shipping
Status: Ongoing

Green Corridor in Northern Europe and the Baltic Sea

Published — August 29, 2022

The first phase of the project considers the implementation of a European Green Corridor Network in the Baltic Sea region, by means of a pre-feasibility analysis. Existing trade routes are analyzed within the region to highlight the most potential for green corridors. Additionally, the different vessel segments are investigated in order to isolate a target segment, which could be used to implement these green corridors. Moreover, different fuel options are assessed in order to provide a conclusion on the most applicable fuel within the region in terms of technical, commercial and social readiness.

Project Objective

Establish Green Corridors in Northern Europe and the Baltic Sea by mid-decade.

In collaboration with major ports in Northern Europe and the Baltic Sea, namely: Gdynia, Rotterdam, Hamburg, Tallinn and Roenne, the Centre leads the project. The vision of the consortium is to establish green corridors, defined as a corridor where ships sail on a regular basis between ports and carbon-neutral fuels are available at the required scale for bunkering.

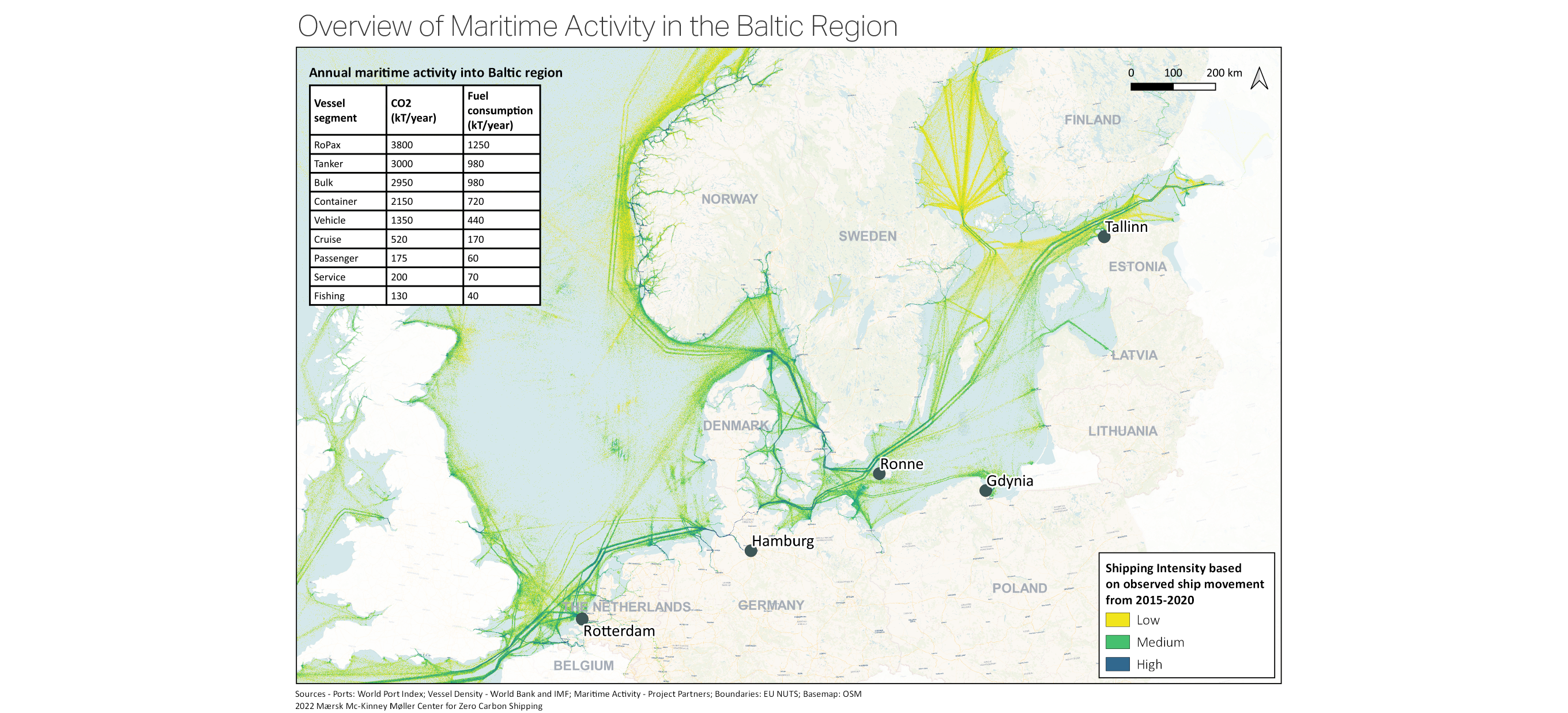

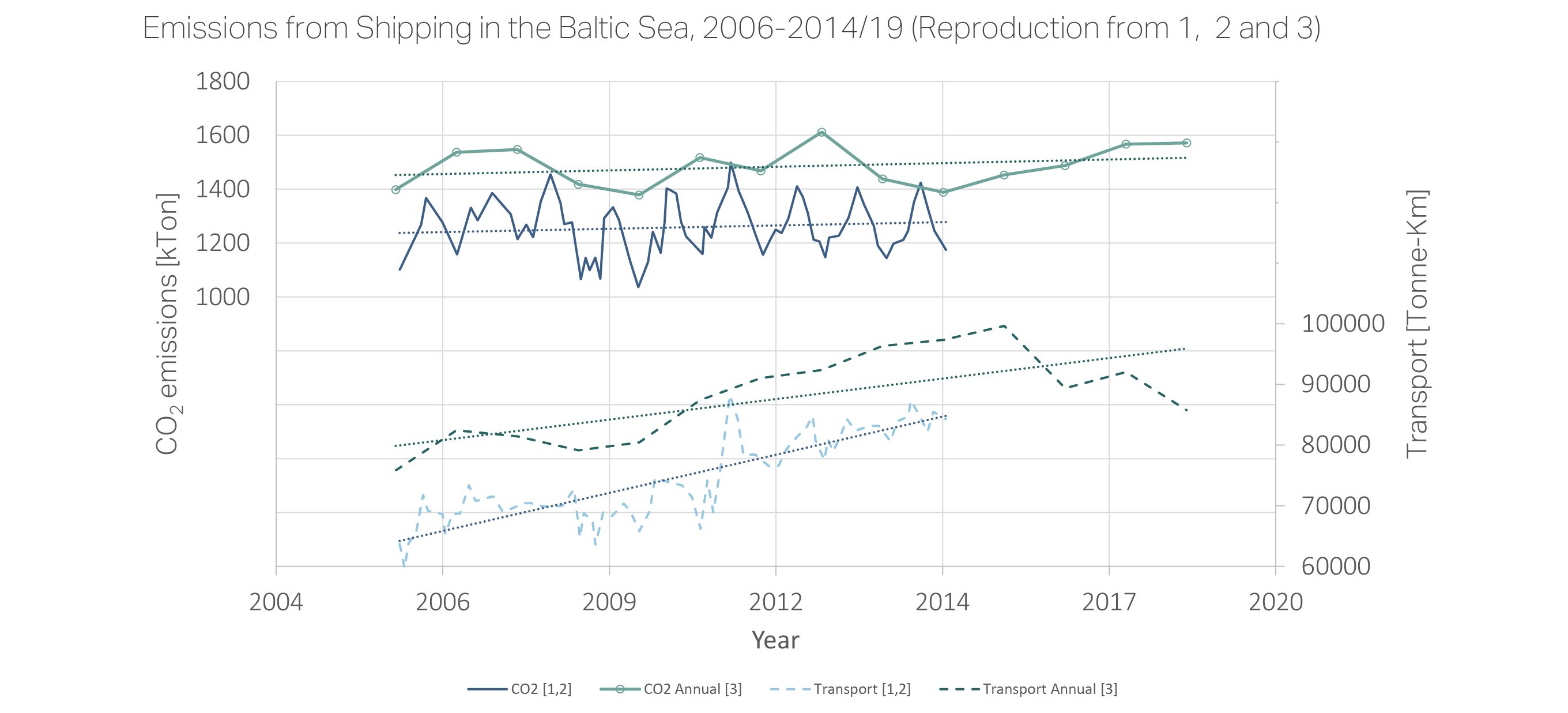

A staggered approach was taken, with Phase 1 of the project defined as identifying and shortlisting routes, vessel segments and fuels. The maritime activity in the Baltic Sea region can be closely analyzed, by means of trade routes and emission contributions. There are about 2000 ships in the Baltic marine area at any given moment, with about 3500–5500 ships navigating through the Baltic Sea per month.

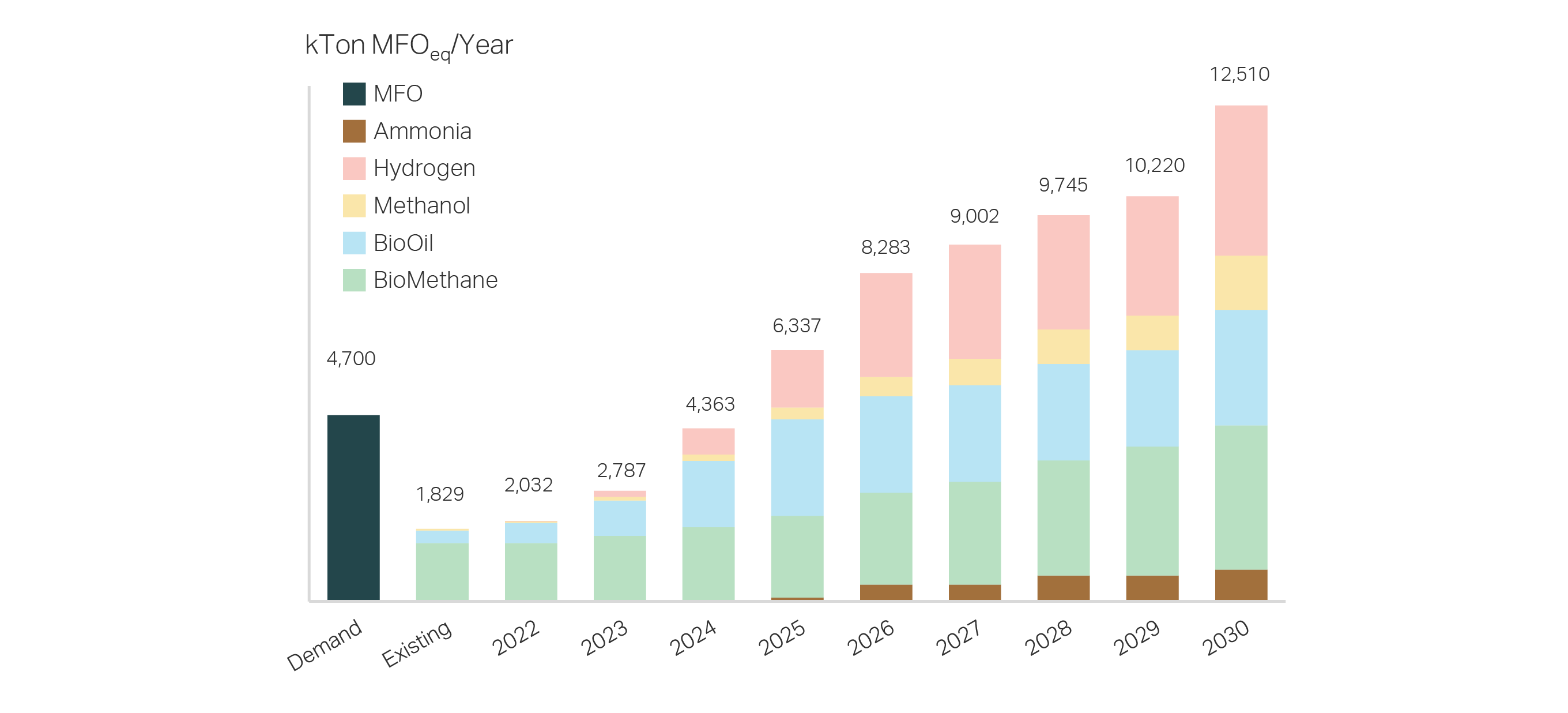

The primary fuel types for first mover shipping segments that were considered are: Bio-oils, Methane, Hydrogen, Methanol and Ammonia. These were assessed via their technical readiness in terms of bunkering infrastructure and their use on vessels, their commercial readiness via the foreseen availability within the region and the relative cost levels. Additionally, the social readiness by regulatory barriers, requirements on emission and existing infrastructure for the analyzed fuels plays a vital role. During the first phase, the aim is to identify and establish the foundation for the first Green Corridors between participating ports, first mover vessel segments, operators, and their bunkering needs in combination with a coherent selection of an alternative fuel supply option.

Subsequently in Phase 2, the technical, regulatory and commercial feasibility of these shortlisted routes will be analyzed, to develop business models and contextualize the investment potential across the value chain. Finally, in Phase 3, the implementation of selected corridors in several stages will been investigated. A roadmap and blueprint to establishing green corridors will be drafted in order to establish which procedures and port regs. are needed to create zero emission trading routes.

Overall, the project aims to establish infrastructure and value chains for alternative fuels at each participating port by mid-decade, so that calling vessels can bunker these fuels. Moreover, the full shipping supply chain needs to be operationalized with vessels sailing on alternative fuels between each participating port by mid-decade, thereby realizing the Green Corridors. Therefore, development of these Green Corridor routes to full commercial scale needs to be accelerated to be implemented by 2030.

Project Milestones

March 2022

Project Kick-off

September 15, 2022

Completion of Phase 1

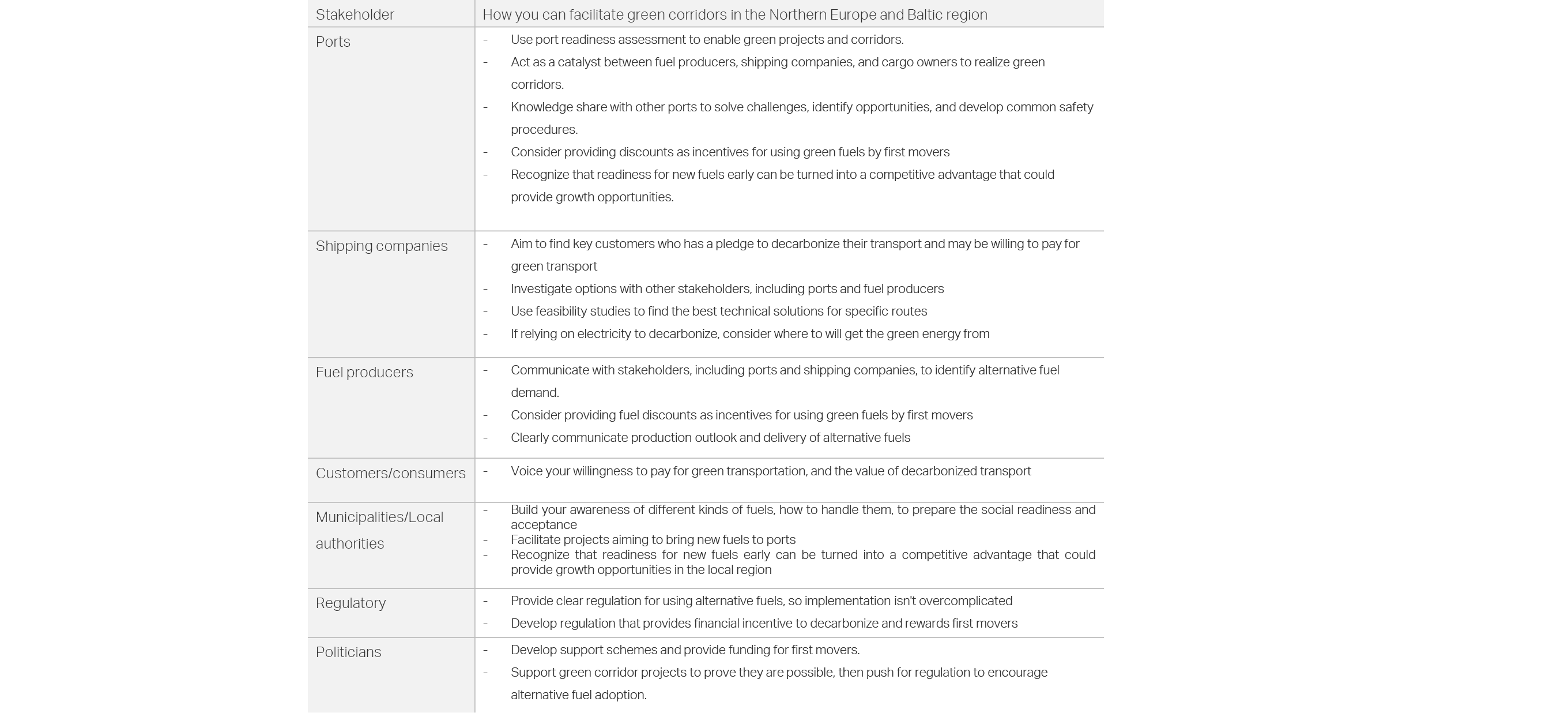

Recommendations

Based on the learning from this prefeasibility study and our workshop, we have developed specific recommendations for stakeholders across the value chain for how they can support green corridors and a green transition in the region.

Recommendations from the Northern European & Baltic Green Corridor Prefeasibility Study

Point of contact

Martin Skjøth-Rasmussen

Fuel Concepts Manager
Contact
